In a solar photovoltaic (PV) system, the way solar modules are interconnected plays a crucial role in determining overall system performance, voltage levels, and current output. Proper wiring ensures efficient solar electricity generation, safety, and optimal system design, while incorrect connections can lead to power losses, overheating, and increased solar installation charges.

Understanding series and parallel interconnections is fundamental for every installer and EPC professional. Correct electrical configuration is essential for reliable renewable solar installations.

This blog provides a complete step-by-step guide to solar module interconnection, covering both series and parallel wiring techniques.

Basics of Solar Module Interconnection

Solar panels can be connected in two main ways:

• Series connection
• Parallel connection

These configurations determine the system’s voltage and current output.

Series Connection of Solar Modules

What is Series Connection?

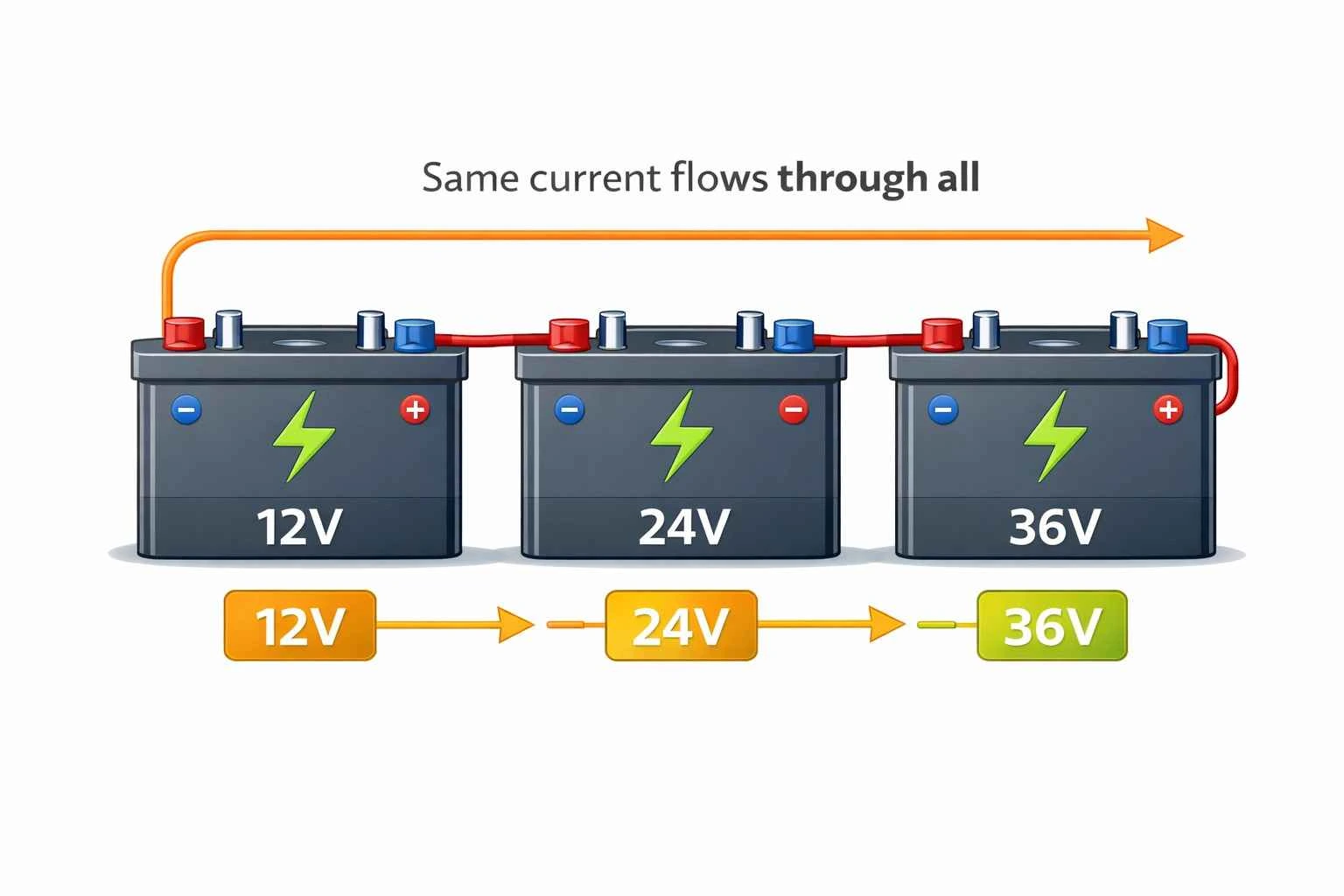

In a series connection, the positive terminal of one module is connected to the negative terminal of the next module.

Effect on Electrical Parameters

• Voltage increases
• Current remains constant

Example

If each module has:

• Voltage = 40V; Current = 10A

For 5 modules in series:

Total Voltage = 200V; Current = 10A

Advantages

• Suitable for high-voltage systems
• Reduces cable losses

Disadvantages

• Shading on one module affects entire string

Parallel Connection of Solar Modules

What is Parallel Connection?

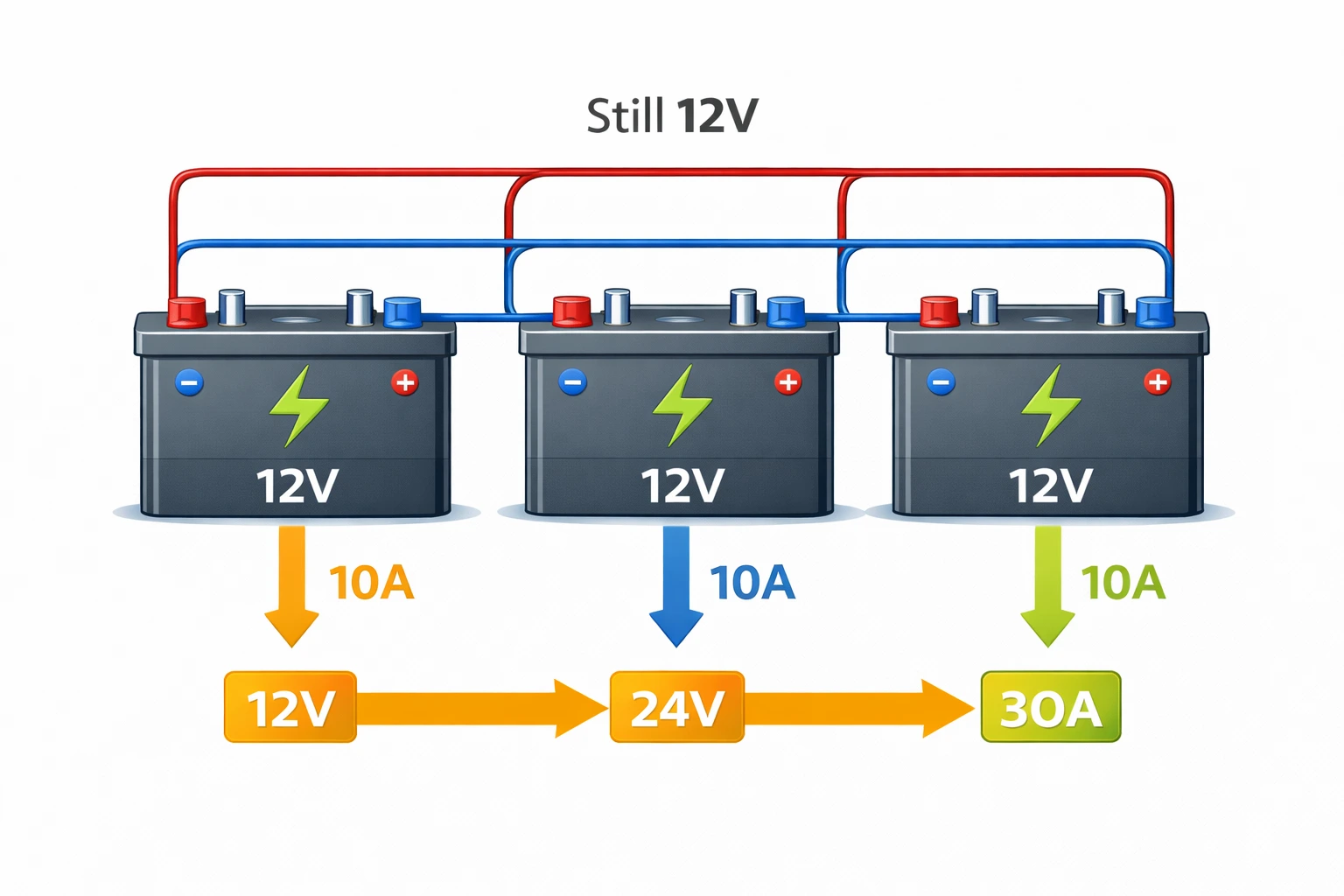

In a parallel connection, all positive terminals are connected together and all negative terminals are connected together.

Effect on Electrical Parameters

• Current increases
• Voltage remains constant

Example

If each module has:

• Voltage = 40V; Current = 10A

For 5 modules in parallel:

• Voltage = 40V; Total Current = 50A

Advantages

• Better performance under partial shading
• Higher current output

Disadvantages

• Requires thicker cables
• Higher installation complexity

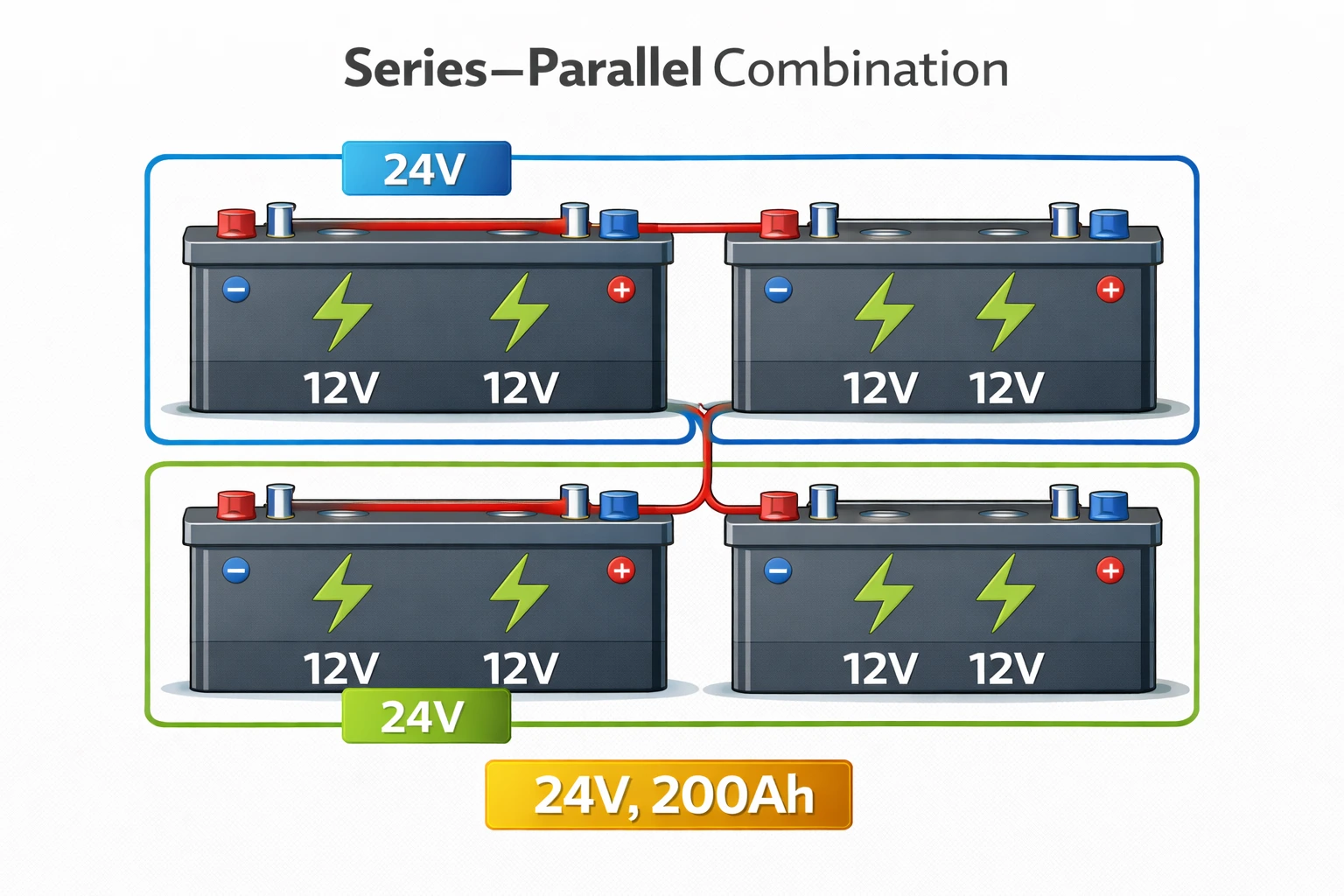

Series-Parallel Combination

Most solar PV systems use a combination of series and parallel connections to achieve desired voltage and current levels.

Components Required for Interconnection

• Solar cables
• MC4 connectors
• String combiner box
• Junction boxes

Tools Required

• Crimping tools
• Wire strippers
• Multimeter
• Insulation tester

Step-by-Step Wiring Guide

Step 1 – Understand System Design

• Review system voltage and current requirements
• Study wiring diagrams

Step 2 – Arrange Modules

• Position modules as per layout
• Ensure proper spacing

Step 3 – Connect Modules in Series

• Connect positive of one module to negative of next
• Form strings

Step 4 – Connect Strings in Parallel

• Combine strings using combiner box
• Connect positive to positive, negative to negative

Step 5 – Use Proper Connectors

• Use MC4 connectors
• Ensure tight connections

Step 6 – Cable Management

• Route cables properly
• Avoid loose or hanging wires

Step 7 – Electrical Testing

• Measure voltage and current
• Verify connections

Step 8 – Final Inspection

• Check insulation
• Ensure secure connections

Conclusion

Proper solar module interconnection is essential for achieving efficient and reliable solar PV system performance. By following correct wiring techniques, ensuring proper connections, and conducting thorough testing, installers can maximize solar electricity generation and system efficiency.

Electrical configuration plays a key role in the success of renewable solar installations. Additionally, compliance with standards set by the Ministry of New and Renewable Energy ensures safety and quality.

With proper interconnection practices, solar professionals can optimize solar panel system cost, enhance solar electricity generation, and contribute to sustainable solar energy for home use and large-scale renewable solar solutions.

FAQs

Q1. What is the difference between series and parallel connection?

Ans: Series increases voltage, while parallel increases current.

Q2. Why are series connections used?

Ans: They are used to achieve higher voltage levels.

Q3. Why are parallel connections used?

Ans: They increase current and improve performance under shading.

Q4. What connectors are used in solar wiring?

Ans: MC4 connectors are commonly used.

Q5. Does wiring affect solar panel system cost?

Ans: Yes, proper wiring improves efficiency and reduces losses.
