Flat roof solar installations are widely adopted for residential, commercial, and industrial buildings due to their flexibility in design and scalability. However, one of the most critical aspects of installing a solar PV system on a flat roof is ensuring proper anchoring and structural safety.

Unlike sloped roofs, flat roofs require careful consideration of wind uplift forces, load distribution, waterproofing, and mounting stability. Improper anchoring can lead to system failure, safety hazards, and increased solar installation charges.

Secure mounting and structural safety are essential for reliable and efficient solar PV installations.

This blog provides a complete guide to anchoring techniques and structural safety for flat roof solar installations, helping installers optimize performance and solar panel system cost.

Why Anchoring is Critical in Flat Roof Solar Systems

Flat roofs are more exposed to environmental forces, especially wind uplift. Proper anchoring ensures:

• Stability of mounting structures
• Prevention of system displacement
• Protection of the roof structure
• Long-term durability
• Efficient solar electricity generation

Poor anchoring can increase solar energy installation cost due to repairs and maintenance.

Types of Anchoring Techniques for Flat Roofs

1. Ballasted Anchoring System

Description

Uses weights (concrete blocks) to hold the solar structure in place.

Advantages

• No roof penetration
• Easy installation
• Preserves waterproofing

Applications

Solar panel in rooftop installations on flat roofs

2. Mechanical Anchoring (Penetrative)

Description

Mounting structures are fixed directly to the roof using bolts and anchors.

Advantages

• High structural stability
• Suitable for high wind zones

Considerations

Requires proper waterproofing

3. Hybrid Anchoring System

Description

A combination of ballasted and mechanical anchoring.

Advantages

• Improved stability
• Reduced load compared to full ballast

4. Chemical Anchoring

Description

Uses chemical adhesives to secure bolts in concrete.

Advantages

• Strong bonding
• Suitable for RCC roofs

Structural Safety Considerations

1. Roof Load Capacity

Evaluate whether the roof can handle:

• Weight of panels
• Mounting structures
• Ballast (if used)

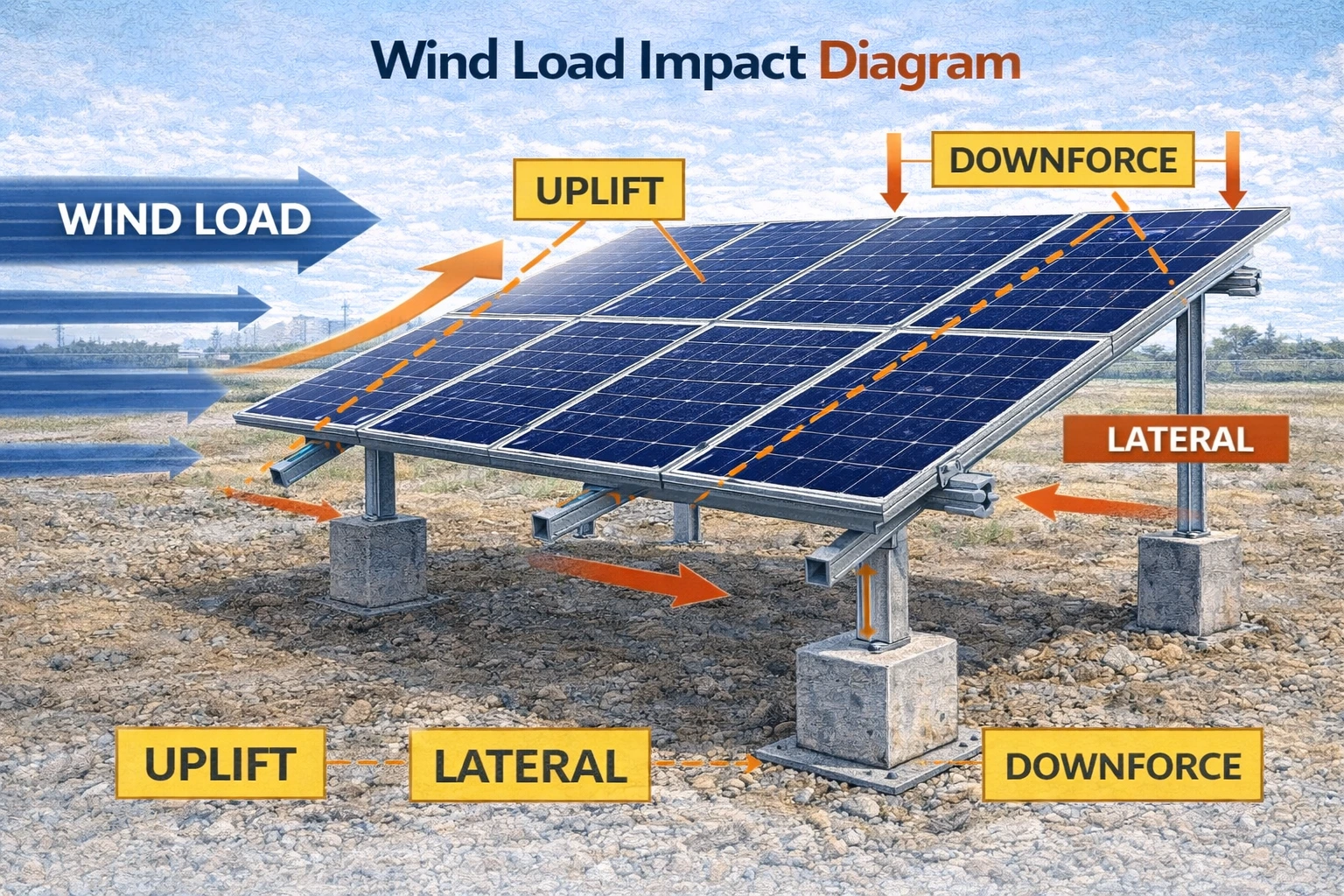

2. Wind Load Analysis

Calculate wind forces acting on the system. Essential for preventing uplift and displacement.

3. Waterproofing Protection

Ensure:

• Proper sealing of penetrations
• No damage to the roof membrane

4. Drainage System

Avoid blocking water drainage paths.

5. Structural Integrity

Ensure the building structure is strong enough to support the installation.

Steps for Anchoring Installation

Step 1 – Site Assessment

Evaluate:

• Roof type
• Load capacity
• Wind conditions

Step 2 – Select Anchoring Method

Choose an appropriate technique based on site conditions.

Step 3 – Mark Layout

Mark positions for mounting structures and anchors.

Step 4 – Install Anchors

• Place ballast or fix anchors
• Ensure correct positioning

Step 5 – Fix Mounting Structures

Secure structures to anchors.

Step 6 – Check Alignment and Stability

Ensure proper tilt and alignment.

Step 7 – Waterproofing and Sealing

Seal all penetrations properly.

Step 8 – Final Inspection

Verify structural safety and installation quality.

Conclusion

Flat roof solar installation requires careful planning of anchoring techniques and structural safety measures to ensure stability and efficiency. By understanding different anchoring methods, analyzing structural requirements, and following best practices, installers can achieve reliable and long-lasting solar PV systems.

Proper mounting and anchoring are essential for successful solar installations. Additionally, compliance with standards set by the Ministry of New and Renewable Energy ensures safety and performance.

With the right approach, solar professionals can optimize solar panel system cost, enhance solar electricity generation, and support sustainable solar energy for home use and large-scale renewable solar solutions.

FAQs

Q1. What is the best anchoring method for flat roofs?

Ans: Ballasted systems are commonly used, but the choice depends on site conditions.

Q2. Why is wind load analysis important?

Ans: It prevents system displacement and ensures structural safety.

Q3. Does anchoring affect solar panel system cost?

Ans: Yes, proper anchoring reduces maintenance and long-term costs.

Q4. How is waterproofing maintained during anchoring?

Ans: By sealing all penetrations and using proper installation techniques.

Q5. Can solar panels be installed without drilling on flat roofs?

Ans: Yes, ballasted systems allow installation without drilling.
