Battery systems are a vital part of many solar photovoltaic (PV) installations, especially in off-grid and hybrid solar plants. They store excess solar electricity generated during the day and provide backup power when sunlight is unavailable or during grid outages. However, improper battery installation can lead to serious issues such as short circuits, equipment damage, overheating, reduced battery life, and even fire hazards.

Among the most critical checks during battery installation are polarity verification and voltage testing. Correct polarity ensures safe current flow, while accurate voltage testing confirms that the battery bank is functioning as designed. Ignoring these steps can increase solar installation charges, reduce system efficiency, and affect overall solar panel system cost.

Proper battery testing and safety checks are essential for reliable renewable solar installations.

This blog provides a complete step-by-step guide for ensuring safe battery installation through polarity and voltage testing, including tools required, procedures, safety measures, and best practices.

Importance of Battery Safety in Solar PV Systems

Battery safety is important because batteries:

• Store large amounts of electrical energy
• Operate continuously in solar systems
• Can cause serious hazards if incorrectly connected

Proper testing helps:

• Prevent equipment damage
• Improve battery lifespan
• Ensure reliable solar electricity generation

Understanding Battery Polarity

Battery polarity refers to:

• Positive terminal (+)
• Negative terminal (-)

Correct polarity is essential for:

• Proper current flow
• Safe charging and discharging
• Protection of inverters and charge controllers

Why Polarity Testing is Important

Polarity testing helps prevent:

• Reverse current flow
• Short circuits
• Equipment failure
• Battery damage

Incorrect polarity can damage:

• Solar inverter
• Charge controller
• DC combiner box
• Battery bank

Understanding Battery Voltage Testing

Voltage testing measures the electrical potential of batteries and battery banks.

It helps determine:

• Battery condition
• Charge level
• Connection accuracy
• System compatibility

Tools Required for Polarity and Voltage Testing

1. Digital Multimeter

Used for voltage and polarity checks.

2. Clamp Meter

Measures current during operation.

3. Insulated Tools

Prevent accidental short circuits.

4. PPE Equipment

Includes:

• Gloves
• Safety goggles
• Safety shoes

5. Battery Terminal Cleaning Tools

Used to prepare terminals before testing.

Pre-Installation Preparation

1. Review Battery Bank Design

Understand:

• Series connections
• Parallel connections
• Voltage configuration

2. Verify Battery Ratings

Check:

• Voltage rating
• Capacity
• Compatibility with solar plant design

3. Inspect Battery Condition

Check for:

• Physical damage
• Leakage
• Corrosion

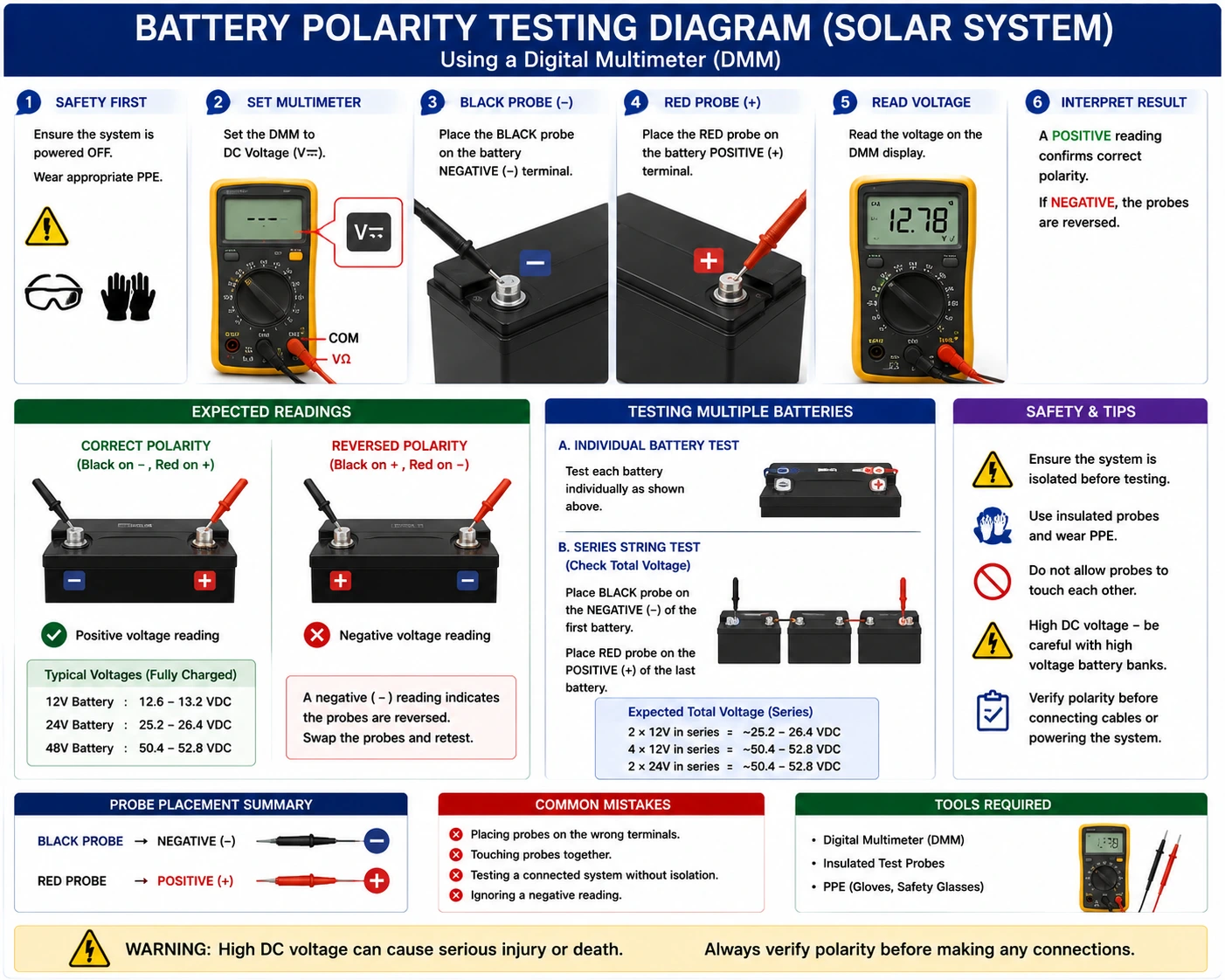

Step-by-Step Battery Polarity Testing Procedure

Step 1 – Isolate the Battery Bank

Disconnect power sources before testing.

Step 2 – Identify Battery Terminals

Locate:

• Positive (+) terminal
• Negative (-) terminal

Step 3 – Set Multimeter to DC Voltage Mode

Choose the appropriate voltage range.

Step 4 – Connect Multimeter Probes

• Red probe to the positive terminal
• Black probe to the negative terminal

Step 5 – Observe Reading

Correct Polarity:

• Positive voltage reading.

Incorrect Polarity:

• Negative voltage reading.

Step 6 – Verify Series and Parallel Connections

Ensure proper connection sequence.

Step-by-Step Battery Voltage Testing Procedure

Step 1 – Set the Multimeter Properly

Select DC voltage measurement mode.

Step 2 – Test Individual Batteries

Measure the voltage across each battery.

Step 3 – Compare Voltage Values

Check for consistent readings among batteries.

Step 4 – Test Complete Battery Bank

Measure total bank voltage.

Step 5 – Verify Against Design Specifications

Ensure measured voltage matches system design.

Common Battery Configurations and Voltage Testing

1. Series Connection

• Voltage increases.
• Example:

12V + 12V = 24V

2. Parallel Connection

Current capacity increases while voltage remains the same.

3. Series-Parallel Connection

Used for larger solar energy installation cost optimization.

Conclusion

Ensuring safe battery installation through proper polarity and voltage testing is critical for maintaining the efficiency, reliability, and safety of solar PV systems. By carefully verifying battery connections, testing voltage levels, and following proper safety procedures, installers can prevent costly errors and improve overall system performance.

Testing and verification are essential parts of renewable solar installations. Additionally, compliance with standards established by the Ministry of New and Renewable Energy ensures safe and standardized battery installation practices.

With proper testing methods, solar professionals can optimize solar panel system cost, improve solar electricity storage reliability, and support sustainable solar energy for home use and advanced renewable energy technology applications.

FAQs

Q1. Why is polarity testing important in battery installation?

Ans: It prevents reverse connections and equipment damage.

Q2. What happens if battery polarity is reversed?

Ans: It can damage the inverter, charge controller, and batteries.

Q3. Why is voltage testing necessary?

Ans: It verifies battery condition and connection accuracy.

Q4. Does proper testing affect solar panel system cost?

Ans: Yes, it reduces failures and maintenance costs.

Q5. What safety precautions are necessary during testing?

Ans: Use PPE, insulated tools, and proper ventilation.
