Solar photovoltaic (PV) systems are most efficient when panels receive maximum sunlight throughout the day. Traditional fixed systems capture sunlight at a constant angle, but solar tracking systems dynamically adjust panel orientation to follow the sun’s movement, significantly enhancing solar electricity generation.

Installing a solar tracking system requires careful planning, precise alignment, and proper integration with electrical and mechanical components. If not installed correctly, it can lead to inefficiencies, increased solar installation charges, and higher maintenance costs.

Tracking systems can improve energy output, but must be installed with precision to ensure performance and reliability.

This blog provides a complete step-by-step guide to installing solar tracking systems, helping installers maximize performance and optimize solar panel system cost.

What is a Solar Tracking System?

A solar tracking system is a mechanism that moves solar panels to follow the sun’s path, ensuring optimal exposure to sunlight throughout the day.

Types of Solar Tracking Systems

1. Single-Axis Tracker

• Moves panels along one axis (east to west)
• Common in large solar plant installations

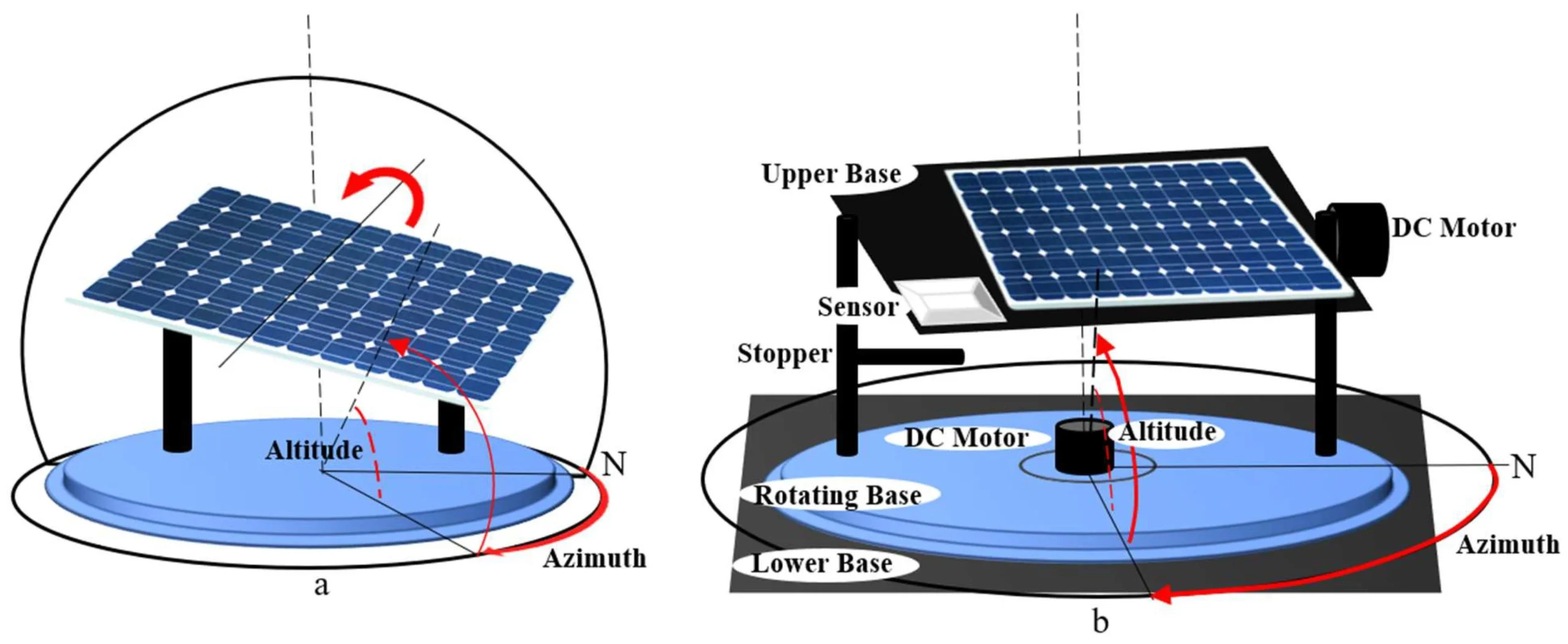

2. Dual-Axis Tracker

• Moves panels in two directions (horizontal and vertical)
• Provides maximum energy output

Advantages of Solar Tracking Systems

• Increased solar electricity generation (15–30%)
• Better utilization of solar energy
• Higher efficiency compared to fixed systems
• Improved return on investment

Components of a Solar Tracking System

• Tracker structure
• Actuators or motors
• Controller unit
• Sensors (sunlight detection)
• Mounting structure
• Power supply system

Tools and Materials Required

Tools

• Torque wrench
• Spanners and wrenches
• Measuring tape
• Spirit level
• Drilling machine

Materials

• Tracker frames
• Motors and actuators
• Control unit
• Fasteners
• Electrical cables

Pre-Installation Preparation

1. Site Assessment

Evaluate:

• Land availability
• Sunlight exposure
• Soil condition

2. Review Design Documents

Study:

• Layout drawings
• Structural and electrical diagrams

3. Material Inspection

Ensure all components are functional and undamaged.

4. Safety Planning

Prepare safety equipment and procedures.

Step-by-Step Installation Process

Step 1 – Foundation Preparation

• Construct strong foundations
• Ensure proper curing of concrete

Step 2 – Install Tracker Mounting Structure

• Fix mounting posts and frames
• Ensure stability and alignment

Step 3 – Install Drive Mechanism

• Attach motors or actuators
• Ensure proper mechanical connection

Step 4 – Install Tracker Bearings and Joints

• Enable smooth movement of panels

Step 5 – Mount Solar Panels

• Fix panels onto the tracker structure
• Ensure proper alignment

Step 6 – Install Sensors and Controller

• Position sensors for sunlight detection
• Connect the control unit

Step 7 – Electrical Connections

• Connect motors, sensors, and the power supply
• Ensure proper wiring and insulation

Step 8 – Calibration and Testing

• Adjust tracking angles
• Test system movement and response

Step 9 – Final Inspection

• Check alignment and stability
• Verify electrical connections

Quality Checks

1. Alignment Accuracy

Ensure panels track the sun correctly.

2. Mechanical Stability

Check for smooth movement and no vibration.

3. Electrical Safety

Ensure proper insulation and connections.

4. System Calibration

Verify tracking efficiency.

Conclusion

Installing a solar tracking system is an effective way to maximize solar electricity generation and improve overall system efficiency. By following proper installation steps, ensuring precise alignment, and conducting regular maintenance, installers can achieve reliable and high-performing solar PV systems.

Tracking systems must be installed with accuracy and care to deliver optimal results. Additionally, adherence to standards set by the Ministry of New and Renewable Energy ensures safety and reliability.

With the right approach, solar professionals can optimize solar panel system cost, enhance solar electricity generation, and contribute to sustainable solar energy for home use and large-scale renewable solar solutions.

FAQs

Q1. What is a solar tracking system?

Ans: It is a system that moves solar panels to follow the sun.

Q2. How much efficiency improvement can tracking systems provide?

Ans: They can increase energy output by 15–30%.

Q3. What are the types of tracking systems?

Ans: Single-axis and dual-axis tracking systems.

Q4. Does a tracking system increase solar panel system cost?

Ans: Yes, initial cost is higher but long-term efficiency improves.

Q5. Is maintenance required for tracking systems?

Ans: Yes, regular maintenance ensures proper functioning.
