In solar PV systems that include energy storage, battery banks play a crucial role in ensuring an uninterrupted solar electricity supply. However, batteries, especially lead-acid types, require proper structural support and safety measures due to risks like acid leakage, corrosion, and electrical hazards.

The installation of a battery bank stand and spill containment system is essential for safety, compliance, and long-term performance. Incorrect setup can lead to safety risks, reduced system life, and increased solar installation charges.

Proper installation of battery systems with safety provisions is critical in renewable solar projects.

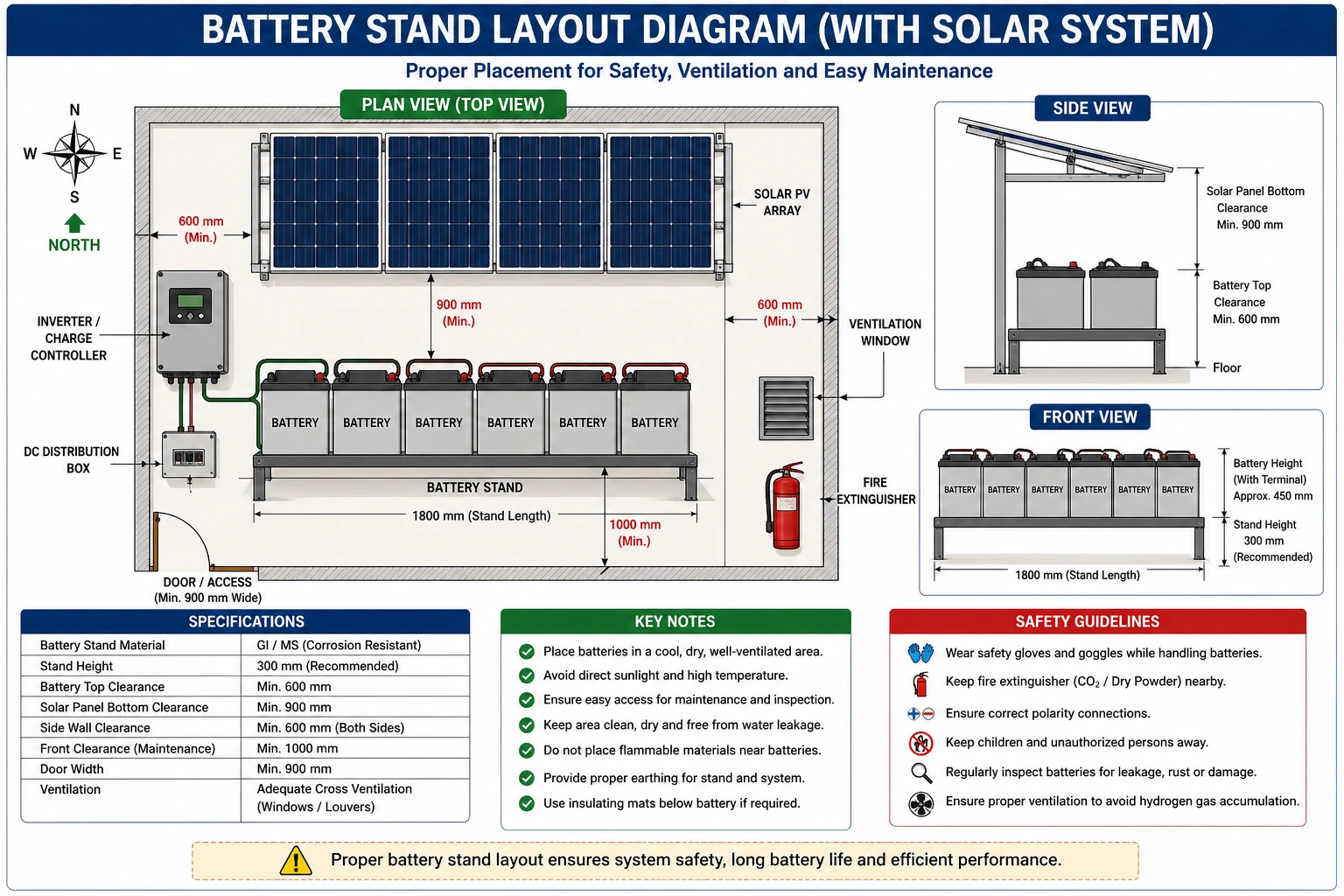

This blog provides a complete step-by-step guide for installing battery bank stands and spill containment systems as per design drawings, ensuring safety and efficiency.

Importance of Battery Bank Stand and Spill Containment

1. Structural Support

Battery stands provide stable support for heavy batteries.

2. Safety Against Spillage

Containment systems prevent acid leakage from spreading.

3. Corrosion Prevention

Protects the surrounding infrastructure.

4. Maintenance Ease

Allows easy inspection and servicing.

5. Compliance with Standards

Ensures adherence to safety regulations.

Components of Battery Bank Setup

• Battery stand (metal or coated structure)
• Spill containment tray
• Acid-resistant coating
• Fasteners and anchors
• Insulation mats

Tools and Materials Required

Tools

• Spanners and wrenches
• Torque wrench
• Measuring tape
• Spirit level
• Drilling machine

Materials

• Battery stand structure
• Spill containment trays
• Anchor bolts
• Protective coatings

Pre-Installation Preparation

1. Review Drawings

• Study layout and design
• Understand dimensions and placement

2. Site Preparation

• Ensure a clean and level surface
• Verify load-bearing capacity

3. Safety Planning

• Arrange PPE
• Ensure ventilation in the battery room

Step-by-Step Installation Process

Step 1 – Mark Installation Area

• Mark positions as per the drawings
• Ensure proper spacing

Step 2 – Install Foundation or Base

• Prepare a concrete base if required
• Ensure a level surface

Step 3 – Assemble Battery Stand

• Assemble frame components
• Ensure structural integrity

Step 4 – Fix the Stand to the Floor

• Use anchor bolts
• Ensure firm fixing

Step 5 – Install Spill Containment Tray

• Place the tray under the battery stand
• Ensure proper alignment

Step 6 – Apply Protective Coating

• Use acid-resistant coating
• Prevent corrosion

Step 7 – Check Alignment and Leveling

• Use a spirit level
• Ensure even placement

Step 8 – Place Insulation Mats

• Prevent electrical hazards

Step 9 – Final Inspection

• Verify stability
• Check spill containment effectiveness

Spill Containment Best Practices

1. Proper Sizing

Containment should hold the full electrolyte volume.

2. Leak Prevention

Ensure no gaps or cracks.

3. Regular Inspection

Check for damage or corrosion.

Quality Checks

1. Structural Stability

Ensure the stand can support the battery weight.

2. Leveling

Verify even placement.

3. Coating Integrity

Check for corrosion protection.

4. Containment Effectiveness

Ensure proper spill handling.

Conclusion

Installing battery bank stands and spill containment systems as per design drawings is essential for ensuring safety, durability, and efficient performance of solar PV systems. By following structured procedures and maintaining quality standards, installers can prevent risks and improve system reliability.

Proper installation and safety practices are crucial in renewable solar projects. Additionally, adherence to standards set by the Ministry of New and Renewable Energy ensures compliance and operational safety.

With the right installation approach, solar professionals can optimize solar panel system cost, enhance solar electricity generation, and support sustainable solar energy for home use and large-scale renewable solar solutions.

FAQs

Q1. Why is spill containment important in battery systems?

Ans: It prevents acid leakage and protects the surroundings.

Q2. What materials are used for battery stands?

Ans: Metal structures with corrosion-resistant coatings.

Q3. How does proper installation affect solar panel system cost?

Ans: It reduces maintenance and improves system lifespan.

Q4. Are safety measures necessary during installation?

Ans: Yes, they ensure safe handling and operation.

Q5. What should be checked after installation?

Ans: Alignment, stability, and containment effectiveness.
