In solar photovoltaic (PV) systems, cables are the backbone of electrical power transmission. They connect solar panels, combiner boxes, inverters, batteries, and utility systems to ensure a smooth and efficient flow of solar electricity. Selecting the correct cable type, color, and gauge is essential for maintaining system safety, reducing power losses, and improving long-term reliability.

Improper cable selection can lead to overheating, voltage drop, insulation failure, energy losses, and increased solar installation charges. Therefore, solar installers and EPC professionals must understand cable specifications, sizing calculations, and industry standards before designing or installing a solar PV system.

Proper cable selection and management are critical aspects of renewable solar projects and solar energy for home use.

This blog provides a complete guide to selecting the correct cable type, color, and gauge for solar PV systems, including technical considerations, sizing methods, safety standards, and best practices.

Importance of Proper Cable Selection in Solar PV Systems

Correct cable selection helps:

• Reduce voltage drop
• Prevent overheating
• Improve system efficiency
• Increase safety
• Extend equipment lifespan
• Optimize solar panel system cost

Poor cable selection can increase:

• Power losses
• Maintenance costs
• Solar installation cost per kWh

Types of Cables Used in Solar PV Systems

1. DC Solar Cables

Used between:

• Solar panels
• DC combiner boxes
• Charge controllers
• Inverters

Features:

• UV resistant
• Weatherproof
• Double insulated
• Heat resistant

These are specially designed for outdoor renewable solar installations.

2. AC Power Cables

Used between:

• Inverter output
• AC combiner box
• Utility grid
• Distribution panel

Features:

• High current-carrying capacity
• Mechanical strength
• Flame resistance

3. Battery Cables

Used for:

• Battery bank interconnections
• Battery to inverter connections

Features:

• Flexible design
• High current handling capability

4. Earthing/Grounding Cables

Used for:

• Equipment grounding
• Lightning protection systems

Importance of Cable Color Coding

Cable color coding helps installers identify:

• Positive and negative conductors
• AC phases
• Neutral conductors
• Grounding wires

Proper color coding improves:

• Safety
• Troubleshooting
• Maintenance efficiency

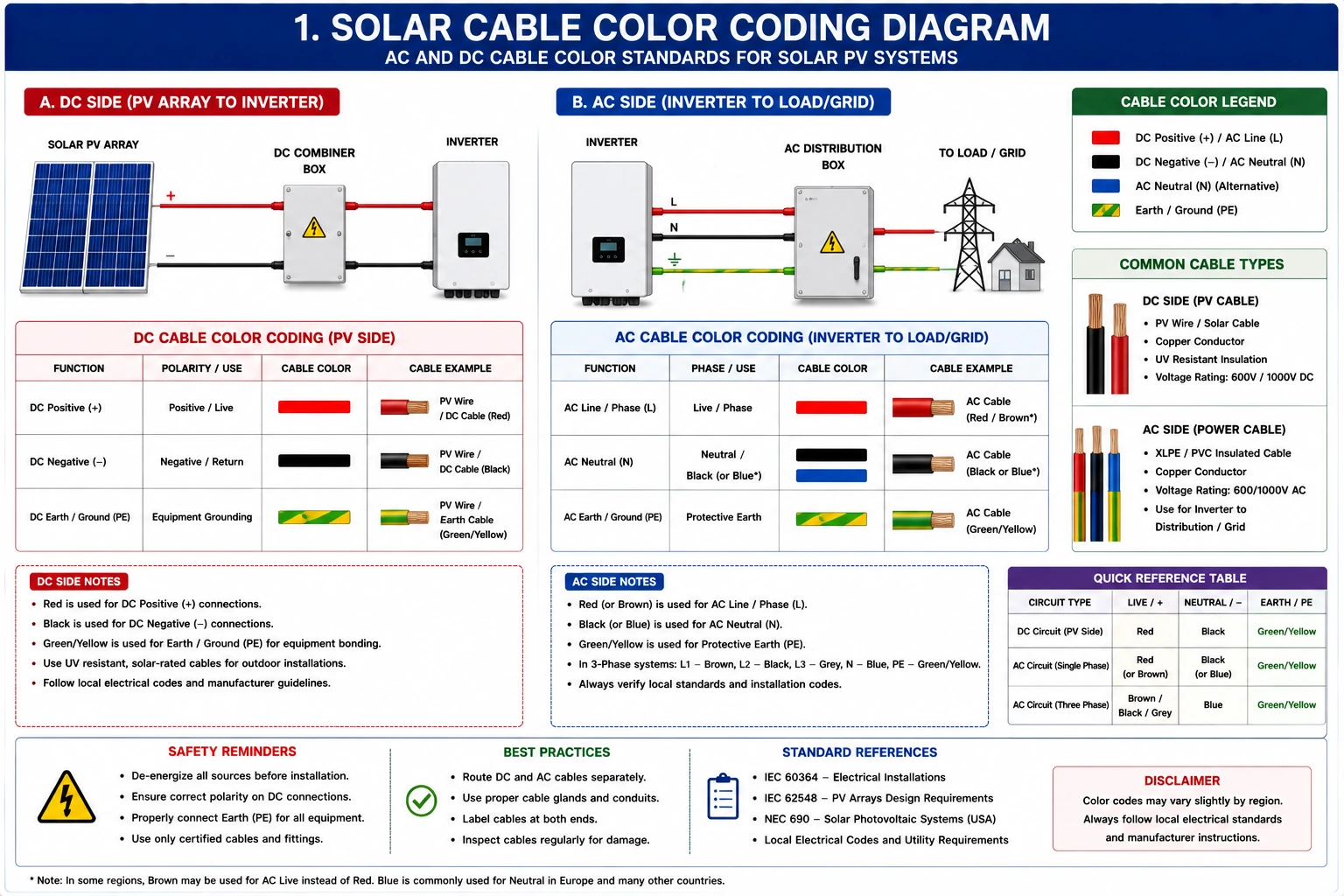

Standard Cable Color Codes in Solar PV Systems

DC Cable Color Codes

AC Cable Color Codes

What is Cable Gauge?

Cable gauge refers to the thickness or cross-sectional area of the conductor.

It determines:

• Current carrying capacity
• Voltage drop
• Cable resistance

Common units include:

• mm² (square millimeter)
• AWG (American Wire Gauge)

Importance of Correct Cable Gauge Selection

Proper cable gauge helps:

• Reduce heating losses
• Prevent insulation damage
• Improve energy efficiency
• Increase system safety

Undersized cables can increase:

• Solar energy installation cost
• Maintenance expenses
• Fire risks

Factors Affecting Cable Gauge Selection

1. Current Carrying Capacity

Higher current requires thicker cables.

2. Voltage Drop

Long cable distances require larger cable sizes to minimize losses.

3. Installation Environment

Consider:

• Ambient temperature
• Sunlight exposure
• Cable bundling

4. Cable Length

Longer routes increase resistance and voltage drop.

5. Safety Standards

Cable selection should comply with electrical regulations.

Voltage Drop in Solar PV Systems

Voltage drop occurs when electrical energy is lost due to cable resistance.

Excessive voltage drop:

• Reduces solar electricity generation efficiency
• Increases solar panel system cost over time

Recommended Voltage Drop Limits:

• DC side: 1–3%
• AC side: 2–5%

Cable Sizing Calculation Basics

Cable sizing depends on:

• Current (A)
• Voltage (V)
• Cable length (m)
• Permissible voltage drop

Simplified Formula:

• Cable Size ∝ Current × Distance

How to Select the Correct Cable Type

Step 1 – Identify Application

Determine whether the cable is for:

• DC solar wiring
• AC power distribution
• Battery connection
• Grounding

Step 2 – Check Voltage Rating

Ensure cable insulation supports system voltage.

Step 3 – Verify Environmental Resistance

Select cables resistant to:

• UV radiation
• Heat
• Moisture
• Chemicals

Step 4 – Select Correct Insulation Type

Common insulation materials include:

• XLPE
• PVC
• Rubber insulation

Step 5 – Verify Certification and Standards

Use certified solar cables compliant with industry standards.

Applications in Solar Projects

1. Residential Rooftop Solar Systems

Ensures safe and efficient home installations.

2. Commercial Solar Plants

Supports large-scale power distribution.

3. Utility-Scale Renewable Solar Projects

Improves long-distance power transmission efficiency.

Conclusion

Selecting the correct cable type, color, and gauge is a critical aspect of solar PV system design and installation. By choosing suitable cables, maintaining proper color coding, calculating accurate cable sizes, and following safety standards, installers can significantly improve system performance, safety, and long-term reliability.

Proper cable management is fundamental for renewable solar projects and solar energy for home use. Additionally, adherence to standards established by the Ministry of New and Renewable Energy ensures safe and standardized installation practices.

With correct cable selection methods, solar professionals can optimize solar panel system cost, improve solar electricity generation efficiency, and support sustainable renewable energy technology adoption across residential, commercial, and industrial sectors.

FAQs

Q1. Why is cable sizing important in solar PV systems?

Ans: Proper sizing reduces voltage drop and prevents overheating.

Q2. Which cable is used for solar panel DC wiring?

Ans: UV-resistant DC solar cables are commonly used.

Q3. Why is cable color coding important?

Ans: It improves safety and simplifies maintenance.

Q4. Does cable selection affect solar panel system cost?

Ans: Yes, proper selection improves efficiency and reduces maintenance costs.

Q5. What safety precautions should be followed during installation?

Ans: Use PPE, proper cable support, and separate AC and DC cables.
