In solar photovoltaic (PV) systems with storage, batteries play a crucial role in ensuring continuous power supply, energy backup, and efficient energy management. Whether it is an off-grid system or a hybrid solar plant, selecting the right battery is essential for system reliability and performance.

Solar battery datasheets include key specifications such as capacity, voltage, efficiency, depth of discharge, and cycle life. For installers and EPC professionals, understanding these parameters is critical to designing efficient and cost-effective renewable solar systems. Proper battery selection directly impacts system performance, lifespan, and solar panel system cost.

This blog provides a complete guide to solar battery specifications, helping you understand how to read datasheets and choose the right battery for solar energy for home use and commercial applications.

What is a Solar Battery?

A solar battery is a device that stores excess solar electricity generated by solar panels for later use.

It is commonly used in:

• Off-grid systems
• Hybrid systems
• Backup power applications

Batteries ensure an uninterrupted power supply even during nighttime or grid outages.

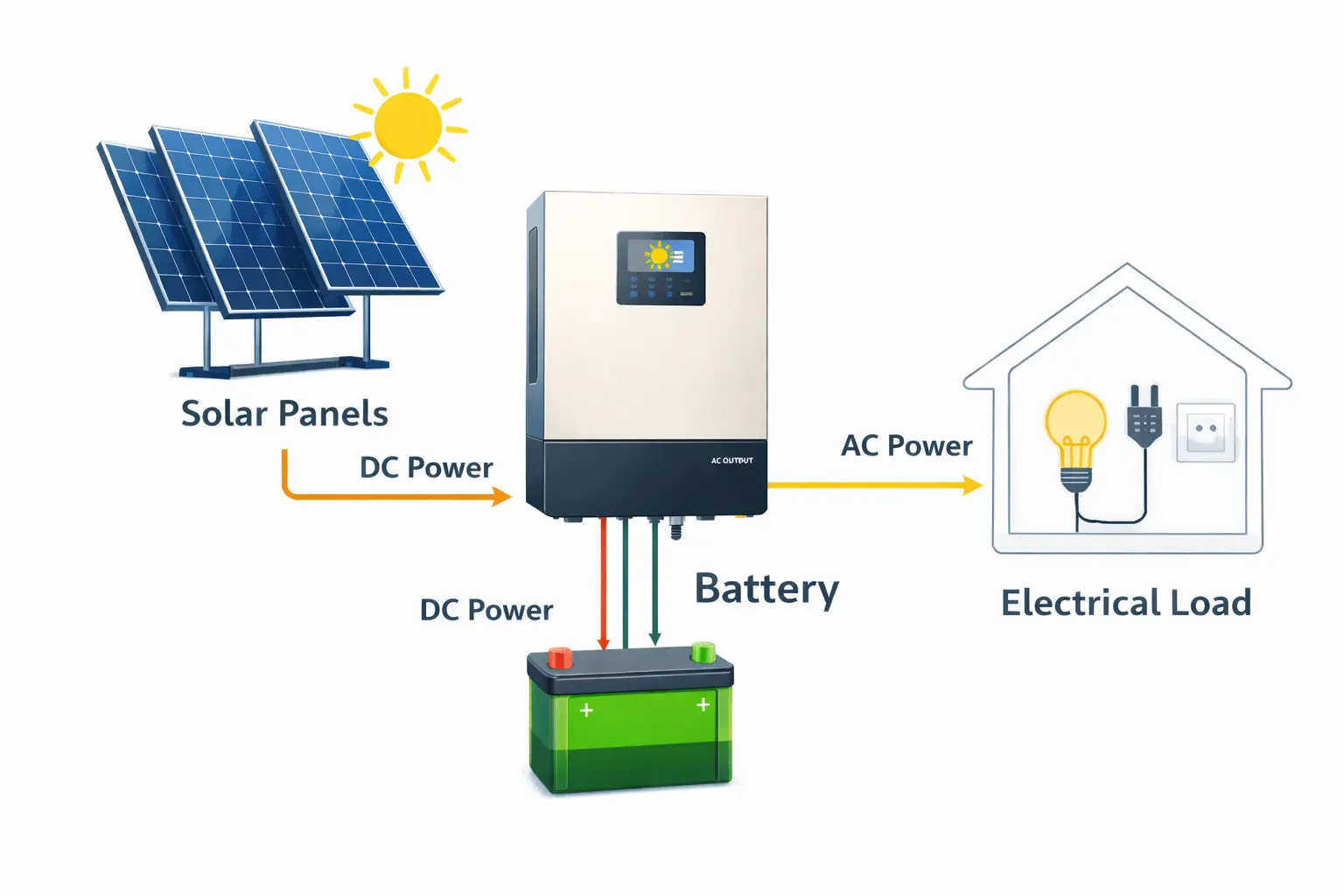

Importance of Solar Batteries in PV Systems

Solar batteries offer several advantages:

• Energy storage for night-time use
• Backup during power outages
• Improved energy independence
• Better utilization of solar electricity
• Enhanced efficiency of renewable solar systems

Key Solar Battery Specifications Explained

1. Battery Capacity (Ah & kWh)

Battery capacity indicates the amount of energy the battery can store.

• Ampere-hour (Ah)
• Kilowatt-hour (kWh)

Example:

• 100 Ah battery; 5 kWh battery

Higher capacity means longer backup time.

2. Battery Voltage (V)

Voltage indicates the electrical potential of the battery.

Common voltages:

• 12V; 24V; 48V

System voltage must match the inverter and system design requirements.

3. Depth of Discharge (DoD)

DoD represents how much of the battery capacity can be used.

Example:

• 80% DoD → 80% usable energy

Higher DoD means better usable capacity.

4. Round Trip Efficiency

Efficiency indicates how much energy can be retrieved compared to what is stored.

Example:

• 90% efficiency → 10% energy loss

Higher efficiency improves overall solar electricity utilization.

5. Cycle Life

Cycle life refers to the number of charge-discharge cycles a battery can complete.

Example:

• 3000 cycles
• 5000 cycles

Higher cycle life means longer battery lifespan.

6. Charge and Discharge Rate

Defines how quickly a battery can be charged or discharged.

Important for:

• High power applications
• Load management

7. Battery Type

Different battery technologies include:

Lead-Acid Batteries

• Low cost
• Lower efficiency
• Shorter lifespan

Lithium-Ion Batteries

• High efficiency
• Longer lifespan
• Higher cost

Gel and AGM Batteries

• Maintenance-free
• Moderate performance

8. Temperature Range

Batteries must operate efficiently under different temperatures. Important for Indian climate conditions.

9. Safety Features

Modern batteries include:

• Overcharge protection
• Thermal management
• Short circuit protection

These features ensure the safe operation of renewable energy technology systems.

How to Read a Solar Battery Datasheet

Step 1 – Check Capacity

Determine energy storage capability.

Step 2 – Verify Voltage

Ensure compatibility with system design.

Step 3 – Analyze DoD and Efficiency

Higher values improve performance and usability.

Step 4 – Review Cycle Life

Choose batteries with a longer lifespan.

Step 5 – Check Temperature and Safety Ratings

Ensure suitability for the installation environment.

How to Choose the Right Solar Battery

1. Based on Energy Requirement

• Calculate daily energy consumption and required backup.

2. Based on System Type

• Off-grid → high capacity required
• Hybrid → moderate capacity

3. Based on the Budget

• Lead-acid batteries are cheaper, while lithium-ion offers better performance.

4. Based on Space Availability

• Compact batteries are suitable for limited space.

5. Based on Performance Needs

• High efficiency and longer lifespan are ideal for long-term use.

Impact of Battery Selection on Solar Panel System Cost

Battery selection affects:

• Initial solar installation charges
• Maintenance costs
• System efficiency
• Cost of solar per kWh installed

Conclusion

Solar batteries are a crucial component of PV systems with storage, ensuring reliable power supply and efficient energy management. By understanding key specifications such as capacity, voltage, efficiency, and cycle life, installers can select the right battery for different applications. Proper battery selection helps improve system performance, reduce solar energy installation cost, and enhance overall efficiency.

Knowledge of battery specifications is essential for successful solar installations. Additionally, compliance with guidelines from the Ministry of New and Renewable Energy ensures safe and reliable renewable solar system implementation.

By choosing the right solar battery, professionals can optimize solar panel system cost, improve solar electricity utilization, and support sustainable solar energy for home use and advanced renewable solar applications.

FAQs

Q1. What is the most important specification in a solar battery?

Ans: Battery capacity (kWh or Ah) is the most important as it determines energy storage.

Q2. What is Depth of Discharge (DoD)?

Ans: DoD indicates how much of the battery capacity can be used.

Q3. Which battery type is best for solar systems?

Ans: Lithium-ion batteries are best for efficiency and lifespan, while lead-acid is more affordable.

Q4. How does battery efficiency affect performance?

Ans: Higher efficiency reduces energy loss and improves usable power.

Q5. Are batteries required for all solar systems?

Ans: No, batteries are mainly used in off-grid and hybrid systems.
