In a solar photovoltaic (PV) system, the DC Combiner Box plays a critical role in collecting and managing the DC power generated from multiple solar panel strings. To ensure safety and smooth operation, the combiner box is often equipped with disconnect protection devices such as DC isolators, fuses, and surge protection devices (SPDs).

Proper installation of a DC combiner box with disconnect protection is essential for preventing electrical hazards, simplifying maintenance, and improving overall solar electricity generation efficiency. Incorrect installation can lead to overheating, voltage drops, equipment failure, and increased solar installation charges.

Proper electrical protection and isolation are mandatory in renewable solar installations for safety and system reliability.

This blog provides a complete step-by-step guide for installing a DC combiner box with disconnect protection, aligned with industry best practices and solar training standards.

What is a DC Combiner Box?

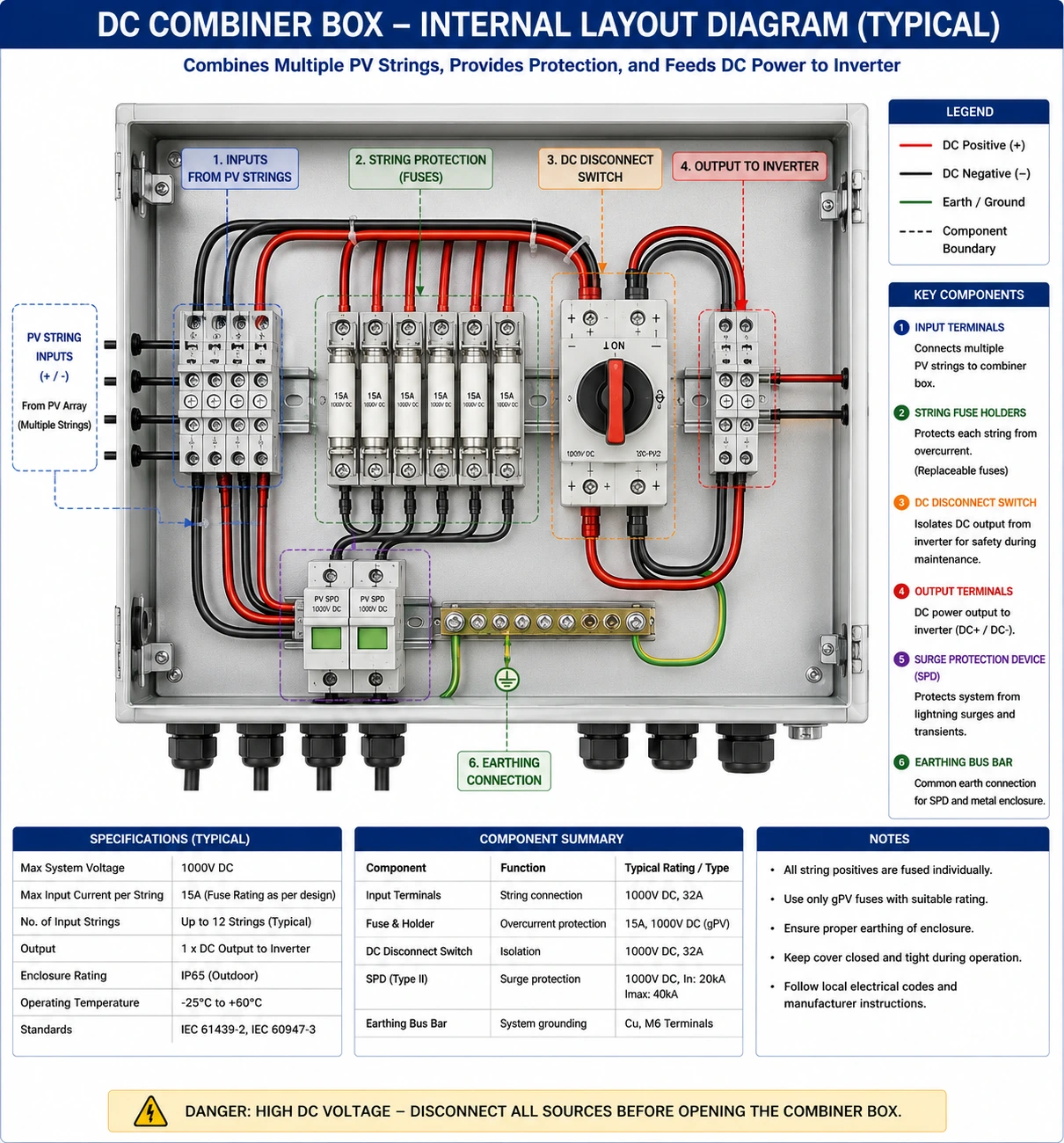

A DC combiner box is an enclosure that combines the output from multiple solar PV strings into a single DC output connected to the inverter.

It typically includes:

• String fuses
• DC isolators/disconnect switches
• Surge Protection Devices (SPDs)
• Terminal blocks
• Monitoring devices

Importance of Disconnect Protection

Disconnect protection ensures that solar PV circuits can be safely isolated during:

• Maintenance
• Emergency shutdown
• Fault conditions
• Inspection and testing

It improves:

• Worker safety
• Equipment protection
• Fire prevention
• System reliability

Components Required for Installation

1. DC Combiner Box Enclosure

Weatherproof enclosure for housing components.

2. DC Disconnect Switch

Allows manual isolation of DC power.

3. String Fuses

Protect individual solar strings from overcurrent.

4. Surge Protection Device (SPD)

Protects against voltage surges and lightning.

5. Terminal Blocks

Provide secure cable connections.

6. Cable Glands and Conduits

Protect and organize cable entry.

Tools Required for Installation

• Insulated screwdrivers
• Wire stripper
• Crimping tool
• Torque wrench
• Multimeter
• Insulation tester

Pre-Installation Preparation

1. Review Design Drawings

Understand:

• String configuration
• Cable routing
• Combiner box location

2. Verify Component Ratings

Ensure compatibility with:

• System voltage
• Current rating
• Environmental conditions

3. Inspect Installation Area

Check for:

• Safe accessibility
• Structural support
• Environmental protection

Step-by-Step Installation Procedure

Step 1 – Select Installation Location

Choose a location that is:

• Close to solar arrays
• Easily accessible
• Protected from water and excessive heat

Step 2 – Mount the DC Combiner Box

• Fix the enclosure securely
• Ensure proper alignment and stability

Step 3 – Install Disconnect Switch

• Mount the DC isolator inside or adjacent to the box
• Ensure clear labeling

Step 4 – Install String Fuses

• Connect fuses for each solar string
• Ensure correct fuse ratings

Step 5 – Install Surge Protection Device

• Connect SPD according to the manufacturer’s instructions
• Ensure proper grounding

Step 6 – Route and Connect Cables

• Use proper cable glands and conduits
• Maintain polarity and cable identification

Step 7 – Tighten Electrical Connections

• Use the torque wrench as per the specifications
• Avoid loose terminals

Step 8 – Ground the Combiner Box

• Connect the grounding cable securely
• Verify earthing continuity

Step 9 – Perform Electrical Testing

Test for:

• Voltage
• Continuity
• Insulation resistance
• Polarity

Step 10 – Label and Document Installation

• Label circuits and disconnect switches
• Update project documentation

Quality Checks After Installation

1. Mechanical Stability

Ensure secure mounting.

2. Proper Cable Management

Check routing and organization.

3. Tightness of Connections

Verify torque values.

4. Functional Testing

Ensure the disconnect switch operates correctly.

5. Weatherproofing

Ensure enclosure sealing.

Conclusion

Installing a DC combiner box with disconnect protection is essential for ensuring the safety, reliability, and efficiency of solar PV systems. By following proper installation procedures, ensuring correct protection device selection, and maintaining quality standards, installers can prevent electrical hazards and improve system performance.

Electrical isolation and protection are fundamental aspects of renewable solar installations. Additionally, compliance with standards set by the Ministry of New and Renewable Energy ensures safe and standardized system operation.

With correct installation practices, solar professionals can optimize solar panel system cost, improve solar electricity generation, and support sustainable solar energy for home use and advanced renewable energy technology solutions.
